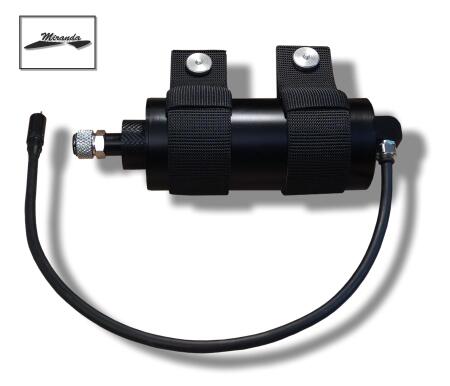

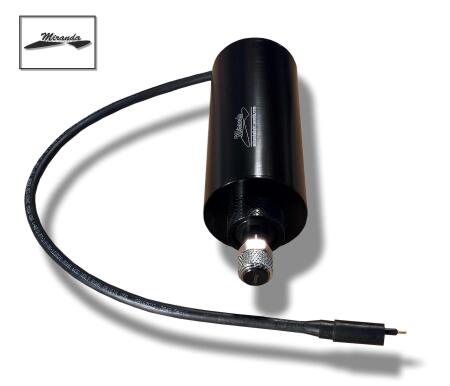

Battery with smooth power regulation 200 Wh SM

Technical data:

• Material -  anodized aluminum.
• Control - voltage control in the range from 0 to 12 V
• Power supply -   Li-ion batteries, fully protected 4S package
• Load - 180 W max
• Depth -   max 150 m, each reservoir is tested to a pressure of 1.6 MPa
• Dimensions y - diameter 8 cm, length 19,5 cm
• Capacity - 200 Wh, equivalent to 18 Ah
• Protection -  All Miranda batteries have overcharge, deep discharge, overload and short circuit protection

The battery is designed to be mounted on a plate or SM harness

The standard length of the E / O cable is 60 cm, please provide information and provide the size of the cable, if it is to be different than the typical one, you can do it while completing the order in the box:

Comment on the order

Miranda batteries are compatible with the Heating system santi, northern diver heated vest and many other 12 V max working units

Charging current max 4.5 A

the charger is not included in the price of the battery

attention

In heating batteries, Miranda introduced second-generation controllers that provide voltage regulation from 0V to 12V in the full range of battery capacity. The new Miranda controllers maintain the set heating power despite the voltage drop on the battery.  It is a breakthrough in powering heating systems that guarantees full power until the battery is exhausted, thus eliminating the effect of weakening heating during diving associated with discharge and voltage drop.

If you use a 14.8 V (4 S) heating system, e.g. Heizteufel, you can order a battery with a first generation controller. The regulation is then in the range of 0 V to the voltage on the battery. Average 14.8 V.
